Shanghai Preciser Safety Technology Co.

PR055

Type:Pendent
Response:Standard
product details
Resources

Technical

K-Factor

5.6(80)

Material

Frame: Brass alloy; Deflector:SS304; Sealing Spring: Metal ring with Teflon

Temperature

/ Color/ Classification

135°F   (57°C)

Orange

Ordinary

155°F   (68°C)

Red

Ordinary

175°F (79°C)

Yellow

Intermediate

200°F   (93°C)

Green

Intermediate

286°F   (141°C)

Blue

High

Thread Size

1/2" NPT (R1/2)

Max. Working

Pressure

175 PSI (12BAR)

Min. Working

Pressure

7 PSI (0.5 BAR)

Factory Testing

Pressure

500 PSI (35BAR)

Surface Treatment

Brass / Chrome / White Painting or customize

Flow Chat

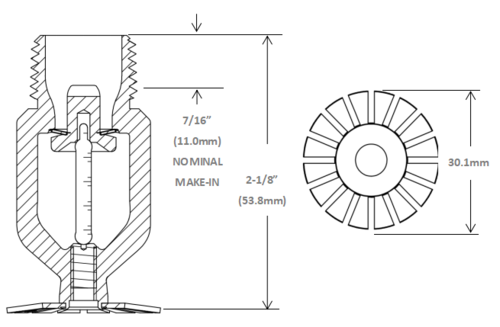

Dimension

(Upright Type)

Dimension

(Downward Type)

Approval


Download file
